Straw pellet press machine

Author: Admin View: Post Time: 2015 / 08 / 25

Straw pellet press machine

Introduce of Straw pellet press machine
Straw pellet press machine is the reformed product made on the basis of the wood pellet of the company and according to the characteristics of biomass fuel granulating, and is mainly used for pressing combustible materials such as saw dust and grass into pellet. It adopts professional forced feeder, strengthened transmission parts, dedicated ring die, press roll and hoop. The Straw pellet grinding machine, not only be used for pelletizing the wood and straw dust, but also other materials. Such as sawdust, wheat straw, rice straw, corn, stalk, rice husk, palm fiber, shell or groundnut shell, hard wood etc. Before pelletizing, raw materials should crush into fine powder, humidity keeps 12% to 20% is proper, 15% is the best state. The Straw hay pellet machine produced is smooth, very beautiful and dense. The power consumption of Straw pellet machine is less, the structure is reasonable and it is economical durable. The final pellets’ length can be adjusted. The Straw hay pellet machine is widely used in the feed plant, wood processing, fuel plant, fertilizer plant and chemical plant etc. Wheat straw pellet mill machine is the ideal pressing shaping equipment with low investment and high profit.

Straw pellet press machine


Technical Parameters of Straw pellet press machine

Straw pellet press machine


Features of Straw pellet press machine
1. Patented ring die technology, mainly improve ring die’s cracking prevention and increased capacity per hour and overall capacity
2. We can provide Stainless steel Straw pellet grinding machine or Carbon steel wood pellet press machine as your request
3. Advanced variable frequency motor, overload protection device, magnetic separating device
4. Wheat straw pellet mill machine is small volume, saving electricity, low noise and can transmiss feeding speed
5. Our Straw hay pellet machine has the characteristic as follows: structure in reason, exterior beauty, and stable performance.
6. Die static, rollers rotate, the force is evenly when press the material, make sure the wood pellets forming and quality, have a smooth and dense appearance.

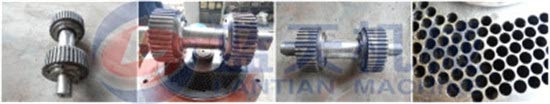

The molds and final products of Straw pellet press machine

Straw pellet press machine


The final products of Straw pellet press machine

Straw pellet press machine


The production line of Straw pellet press machine
First let raw materials (The water content should be no greater than 15%) enter into screw feeder through hopper, second adjust the rotational speed of screw feeder axis to obtain the suitable flow of material, during this step the security magnets remove the magnetic impurity mingling away supplies, then through the enforced feeder, the materials enter into the pressing room to pelletize finally.

Straw pellet press machine

The packaging and shipping of Straw pellet press machine

Straw pellet press machine


The customers visit our factory

Straw pellet press machine

Our certificates

Straw pellet press machine

Our service
1. Technology consultation, various models for choice, according to customers' needs design Straw pellet making machine
2. Visit to our factory, have an investigation and have a performance test.
3. Engineers available to service machinery overseas, provide install guidance
4. Warranty1 year, quality guarantee, except wear parts and wrong operation.


Company information
Lantian mechanical plant is a big enterprise, which the integrated system of research, design, manufacturing and international trade. Main products: biomass fuel pellet production line, feed pellet production line, organic fertilizer and municipal solid waste processing equipment, agricultural equipment, Straw hay pellet machine, Wheat straw pellet mill machine, Straw pellet grinding machine etc.  Our company will continue to vigorously carry forward the "integrity, innovation, collaboration, efficiency" spirit of enterprise, adhere to technological innovation, product innovation, management innovation, service innovation, and vigorously promote the product quality and market internationalization, full build "Lantian machinery" brand image.

Straw pellet press machine


If you are interested in our products , please send inquiry to our email:Alisa@lantianmachine.com
