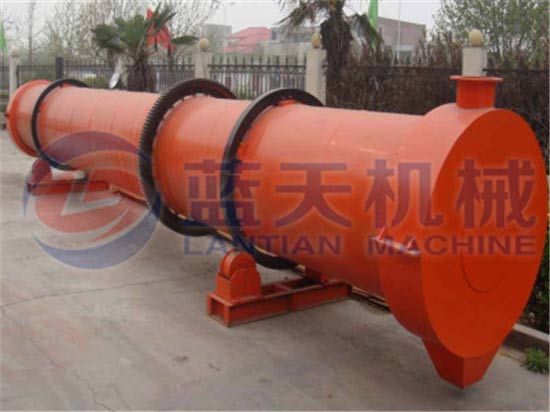

Description of Sand dryer
Lantian machinery production of Sand dryer equipment, mainly composed of rotary cylinder, induced air equipment, high-speed scattered equipment, feed plate, the cleaning device, transmission device, conveying equipment, hot air equipment, reducer, supporting device and sealing device and other parts. Lantian LHG series Sand rotary drum dryer design is reasonable, well-made, stable performance, advanced technology, high output, low energy consumption, small size, high mechanization degree. Silica sand rotary dryer can dry high wet and high gravity materials, such as kinds of sand, dry-mixed mortar, cement slag, clay, coal gangue, mixture, fly ash, gypsum, iron powder, limestone, coal, ore and so on.

Application
For Drying the river sand ,sea sand ,silica sand ,quartz sand ,yellow sand , you can choose the three cylinder rotary dryer (Use  for big capacity )or the single cylinder rotary dryer (Use for small capacity ).
River sand dryer is widely used in building materials, metallurgy, chemical industry and cement industry, which is also used to dry the stuff, such as the limestone, coal powder, slag and clay, vinasse, chicken manure, coal slurry, sand, sawdust, gypsum and so on.

Main features of Sand dryer
1. Reasonable design, the control of the water is very good, is ten times higher than the old dryer drying efficiency
2.Fuel can be used white coal and bituminous coal, coal gangue, oil, steam, can bake 20-40 mm the following piece of material, aggregate, powder materials;
3. Sand rotary drum dryer is low consumption and energy saving
4. Covers an area of about 60% lower than old dryer and civil investment to reduce 60%.
5. Lower outlet temperature, longer dust removal using life
6. Silica sand rotary dryer is high productive capacity, wide application scope


Technical parameter of Sand dryer


The final products of Sand dryer


The process flow of the Sand dryer
River sand dryer in to complete the whole drying process need to cooperation with other related equipment, general sand dryer with the disc feeder, belt conveyor, hot blast stove, linear vibrating screen, hoist and dust removal system, cohesion between each equipment need to be able very good to ensure the whole process is completed.
wet sand - bin - disc feeder, belt conveyor, hot blast stove, quicksand tube, sand hopper in the dryers -- -- belt conveyor, linear vibrating screen, dry sand bin (dust impurities from the upper part of the hopper into the cyclone)


The case


Our customers from all over the world

Packaging & Shipping of Rotary sand dryer

Certifications

Our service
In the after sales service, Lantian machinery has a team of briquetting professionals ready to help you. We provide one year warranty for all of our products and six month for the wear parts. Spare and wear parts are always close to you.
